Cheap Price NanoTouch Smart Blackboard CVT

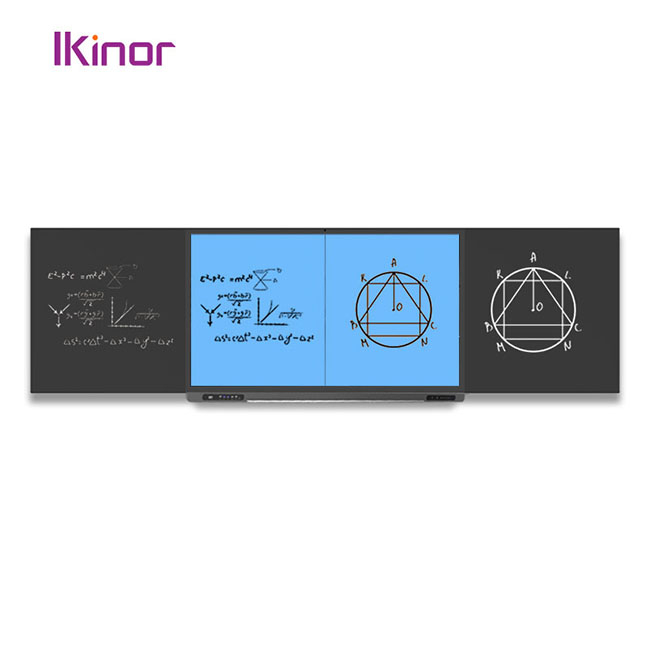

The Ikinor Recordable Smart Blackboard is a groundbreaking interactive blackboard designed to elevate presentations and collaborative work in the realm of smart education. This innovative smart blackboard boasts a dual-panel configuration, with two writing boards on the left and right and a central touch screen display. Handwriting on the side blackboards can be recorded onto the middle display, allowing for content preservation. This unique blend seamlessly combines the functions of a traditional blackboard and an electronic one. The Ikinor Recordable Smart Blackboard supports normal writing with ordinary chalk, dust-free chalk, and various liquid pens, revolutionizing the teaching experience.

Product Advantage：

• Seamless Three-Panel Design: The Ikinor Recordable Smart Blackboard features three panels that connect seamlessly. This design provides an expansive canvas for teaching and presentations, ensuring that content flows seamlessly across the entire surface.




• Optical Bonding Technology: Leveraging advanced optical bonding technology, this smart blackboard offers impeccable clarity and responsiveness, enhancing the overall user experience.




• Versatile Writing Options: Perfectly suited for classrooms, it supports various writing tools, including ordinary chalk, dust-free chalk, and various ink pens. This versatility accommodates diverse teaching styles and preferences.




• Multi-Function Display: The central display combines the functions of a traditional blackboard, a high-definition display, and interactive touch control. Educators can seamlessly switch between traditional and digital teaching methods with ease.

Ikinor IK Series 1.0 Interactive Flat Panel Display
Model	IK65	IK75	IK86	IK98

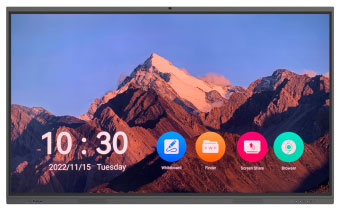

Product picture
Display specification
Diagonal display size	65"	75"	86"	98"
LED Brand	CSOT/BOE
Bezel color	Aluminum frame(Silver & black color)
Back Light	Direct type LED
Active area (mm)	1428.48 * 803.52	1649.66 * 927.93	1895.04 * 1065.96	2158.85 * 1214.35
Resolution	3840*2160 /UHD
Aspect Ratio	16:9
Contrast Ratio	1200:1/4000:1
Colors	1.07 billion colors
Brightness	350cd/m2
Viewing angle	178°
Glass hardness	Mohs-7 level
Screen surface	4mm thickness Anti-Glare glass
Bonding Technology	Zero Bonded, no Air Gap between the LED and glass
Panel Interactivity
Touch technology	IR touch
Touch points	40 points (Win 7/8/10) 20 points touch (Android)
Touch accuracy	±2mm(Windows)
Recognition	Finger or passive stylus
Response Rate	<4ms(single touch) <10ms(max touch inputs)
Minimum object size	2mm
Response Time	<5 ms
Windows OPS Slot	OPS & OPS-C Intel standard
Hotspot	Yes
Bluetooth	V 5.0
WiFi	IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz
System support	Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
Operating system
Android Version	Android 11.0
Chipset	Amlogic T982
CPU	4×ARM Cortex-A55
GPU	RM Mali-G52
RAM	DDR4 4GB(8G for optional)
ROM	32GB(128 for optional)
Compliant with	Windows; Mac; Linux; Chrome OS
Front side Connectivity
Front ports	USB3.0 Type A  * 2, Touch USB3.0 type B   * 1, HDMI in 2.0   * 1, Type C  * 1
Front Button	Indicator: Red/Blue, Lighter Sensor, One kry recover Power/ Home/ Back/ Setting/ V- /  V+
Speaker	15W*2

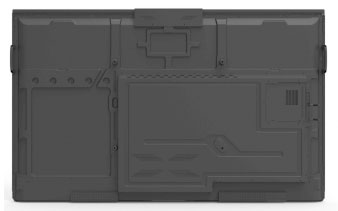

Rear side Connectivity
Rear Side ports	1. (Mini）MIC In*1 2. RS232*1 3. OPTICAL OUT*1 4. VGA*1 5. PC AUDIO IN*1 6. RJ45 in*1 6. (Mini)LINE OUT*1 7. TOUCH OUT(USB3.0)*1 8.HDMI in*2 9. USB2.0*1 10.USB3.0*1
Physical specifications
Net Weight/(kg±2)	43	55	80	92
Gross Weight/(kg±2)	53	65	93	110
Overall size(mm) (without bracket)	1483.8 * 884.4 * 91	1706 *1008.5 *91.2	1958.8* 1148.1*91.2	2216 * 1301 *101.5
Overall size(mm) (with bracket)/(L*H*W)	1483.8 * 884.4 * 121	1706 * 1008.5 * 121.2	1958.8*1148.1*121.2	2216 * 1314.5 * 125.5
Carton size(mm)/(L*H*W)	1590 * 1110 * 200	1820 * 1240 * 200	2060*1370*200	2362 * 1533 * 210
VESA(mm)	500*400	600*400	800*400	1000*400
Electrical
Input Voltage	90-264V AC
Power Consumption(Standby)	<0.5W
Power Consumption	Maximun< 225W	Maximun< 335W	Maximun< 450W	Maximun< 650W
Environmental
Working Temperature	0℃ ~ 40℃
Storage Temperature	一20℃ ~ 60℃
Working Humidity	10% ~ 90% RH Non-Condensing
Storage Humidity	10% ~ 60% RH Non-Condensing
OPS PC(Optional)
CPU	I5(I3/I7 for optional)
RAM	8G(4G/16G for optional)
ROM	128G SSD (256G/512G)
Standrad	80 PIN(Chinese Standard/international standard)
Dimension/cm	195*180*42/119*180*30
Camera(Optional)
Model	UHD Camera
Install Method	Built-in(on the middle-upper frame)
Pixel	12MP
FOV	Diagonal: 94°
Compliant with OS	Windows; Android; Mac; Linux; Chrome OS
Microphone(Optional)
Install Method	Built-in(on the middle-upper frame)
Number	8 Array
Voice Pickup	0-8M
Accessories
Accessories	Pen * 2pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit; Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)
