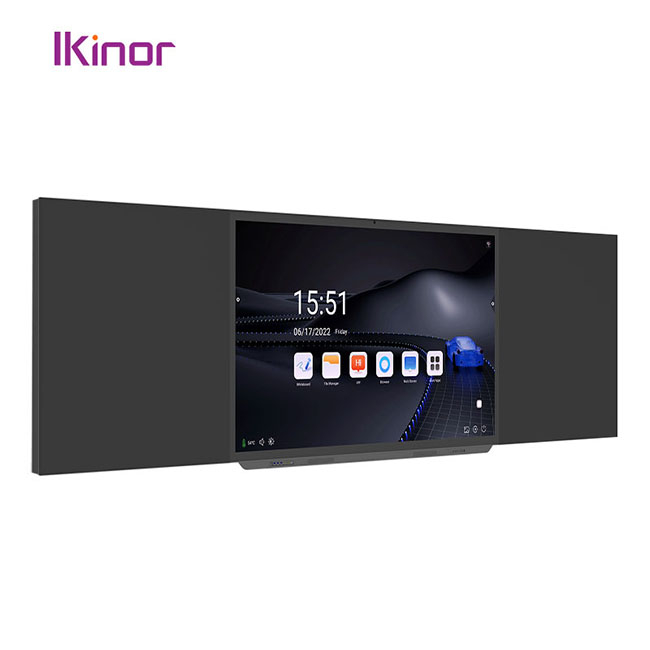

High Performance NanoTouch Smart Blackboard

The Ikinor E-Blackboard represents a new era in interactive touch screen blackboards, purpose-built for modern education. This innovative smart blackboard seamlessly integrates two writing boards on the left and right with a central touch screen display. It combines the functions of a traditional blackboard with an electronic one, supporting normal writing with ordinary chalk, dust-free chalk, and various liquid pens. The Ikinor E-Blackboard revolutionizes education by blending the best of both worlds, offering a superior teaching experience.

Product Advantage：

• Seamless Three-Panel Design: The E-Blackboard's three panels connect seamlessly, offering a wide canvas for teaching and presentations. Its design ensures that your content flows seamlessly across the entire surface.




• Versatile Writing Options: This smart blackboard supports various writing tools, including ordinary chalk, dust-free chalk, and a range of ink pens. Whether it's traditional writing or modern digital annotation, it caters to every teaching style.




• Multi-Function Display: The middle display combines the functions of an ordinary blackboard, a high-definition display, and interactive touch control. It allows educators to switch between traditional and digital teaching methods effortlessly.




• Ultra HD 4K Resolution: The E-Blackboard boasts an Ultra HD 4K resolution, ensuring that content is displayed with exceptional clarity and detail. It captivates the audience with stunning visuals.




• Interactive Touch Control: With 10-points touch support in the middle display, educators can engage students with interactive lessons, fostering active participation and a deeper understanding of the subject matter.




• Easy Installation and Optional Built-in OPS: The E-Blackboard is designed for hassle-free installation and delivery. Additionally, it offers optional built-in OPS (Open Pluggable Specification), expanding its capabilities further.

Product Uses：

• Interactive Classrooms: In smart classrooms, educators use the E-Blackboard to deliver engaging lessons that seamlessly blend traditional teaching methods with modern technology. It encourages student participation and collaboration.




• Collaborative Presentations: Business professionals leverage the E-Blackboard for collaborative presentations and brainstorming sessions. It fosters creativity and enables interactive discussions in meetings and conferences.




• Educational Institutions: From K12 schools to universities, the E-Blackboard enhances the learning experience by providing a versatile platform for teaching and interactive multimedia content. It adapts to the unique needs of each educational level.




• Professional Development: Beyond education, the E-Blackboard supports professional development sessions, workshops, and training programs, ensuring that information is conveyed effectively and interactively.

Ikinor IK Series 2.0 Interactive Flat Panel Display
Model	Spec.	IK65	IK75	IK86	IK98	IK110

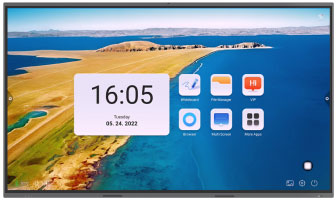

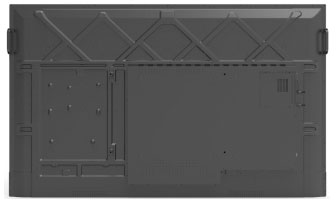

Product picture
Display specification
Diagonal display size		65"	75"	86"	98"	110"
LED Brand	CSOT/BOE/AUO	√	√	√	√	√
Bezel color	Aluminum frame(Silver color)	√	√	√	√	√
Back Light	Direct type LED	√	√	√	√	√
Active area (mm)	(H) * (V)	1428.48 * 803.52	1649.66 * 927.93	1895.04 * 1065.96	2158.85 * 1214.35	2436.48 * 1370.52
Resolution	3840*2160 /UHD	√	√	√	√	√
Aspect Ratio	16:9	√	√	√	√	√
Contrast Ratio	1200:1/4000:1	√	√	√	√	√
Colors	1.07 billion colors	√	√	√	√	√
Brightness	350cd/m2	√	√	√	√	√
Viewing angle	178°	√	√	√	√	√
Glass hardness	Mohs-7 level	√	√	√	√	√
Screen surface	4mm thickness Anti-Glare glass	√	√	√	√	√
Panel Interactivity
Touch technology	IR touch	√	√	√	√	√
Touch points	40 points (Win 7/8/10) 20 points touch (Android)	√	√	√	√	√
Touch accuracy	±2mm(Windows)	√	√	√	√	√
Recognition	Finger or passive stylus	√	√	√	√	√
Response Rate	<4ms(single touch) <10ms(max touch inputs)	√	√	√	√	√
Minimum object size	2mm	√	√	√	√	√
Response Time	<5 ms	√	√	√	√	√
Windows OPS Slot	OPS & OPS-C Intel standard	√	√	√	√	√
Hotspot	Yes	√	√	√	√	√
Bluetooth	V 5.0	√	√	√	√	√
WiFi	IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz	√	√	√	√	√
System support	Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux	√	√	√	√	√
Front side Connectivity
Front ports	USB3.0 * 3 (Public) Touch out USB A type * 1 HDMI in 2.0 * 1 Type C* 1	√	√	√	√	√
Front Button	Indicator: Red/Blue;       Buttons:Screen Record; Image Aspect Ratio; V-; V+; Setting ; Eye Protect; Power	√	√	√	√	√
Speaker	10W*2	√	√	√	√	√
Rear side Connectivity
Rear Side ports	RJ45 in *1 RJ45 out *1 RS232 *1 HDMI out *1 SPDIF OUT*1 YPBPR IN*1 AV in *1 AV out*1 MIC*1 Earphone*1 VGA in*1 Audio in*1 DP *1 HDMI in*2 Touch USB 2.0 Type B *1 USB2.0*1 USB3.0*2 TF CARD*1 Type-C*1	√	√	√	√	√
Operating system
Android Version	Android 11.0	√	√	√	√	√
Chipset	Amlogic T982	√	√	√	√	√
CPU	4×ARM Cortex-A55	√	√	√	√	√
GPU	RM Mali-G52	√	√	√	√	√
RAM	DDR4 4GB	√	√	√	√	√
ROM	32GB	√	√	√	√	√
Compliant with	Windows; Mac; Linux; Chrome OS	√	√	√	√	√
Physical specifications
Net Weight	(kg±2)	43	55	80	92	110
Gross Weight	(kg±2)	53	65	93	110	144
Overall size(mm) (without bracket)	(L*H*W)	1483.8 * 884.4 * 91	1706 * 1008.5 * 91.2	1958.8* 1148.1 * 91.2	2216 * 1301 * 101.5	2499.6 * 1474.2 * 101.5
Overall size(mm) (with bracket)	(L*H*W)	1483.8 * 884.4 * 121	1706 * 1008.5 * 121.2	1958.8*1148.1*121.2	2216 * 1314.5 * 125.5	2499.6 * 1474.2 * 137.5
Carton size(mm)	(L*H*W)	1590 * 1110 * 200	1820 * 1240 * 200	2060*1370*200	2362 * 1533 * 210	2606 * 1593.1 * 200
VESA	(mm)	500*400	600*400	800*400	1000*400	1000*800
Electrical
Input Voltage	90-264V AC	√	√	√	√	√
Power Consumption(Standby)	<0.5W	√	√	√	√	√
Power Consumption		Maximun< 225W	Maximun< 335W	Maximun< 450W	Maximun< 650W	Maximun< 760W
Environmental
Working Temperature	0℃ ~ 40℃	√	√	√	√	√
Storage Temperature	一20℃ ~ 60℃	√	√	√	√	√
Working Humidity	10% ~ 90% RH Non-Condensing	√	√	√	√	√
Storage Humidity	10% ~ 60% RH Non-Condensing	√	√	√	√	√
OPS PC(Optional)
CPU	I5(I3/I7 for optional)	√	√	√	√	√
RAM	8G(4G/16G for optional)	√	√	√	√	√
ROM	128G SSD (256G/512G)	√	√	√	√	√
Standrad	80 PIN(Chinese Standard/international standard)	√	√	√	√	√
Dimension/cm	195*180*42/119*180*30	√	√	√	√	√
Accessories
Accessories	Pen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit; Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)

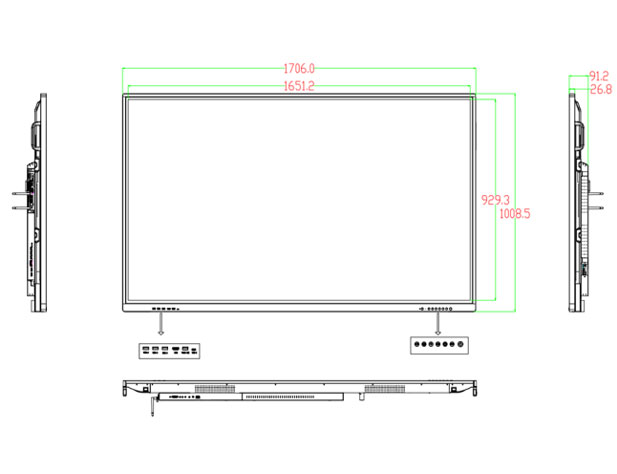

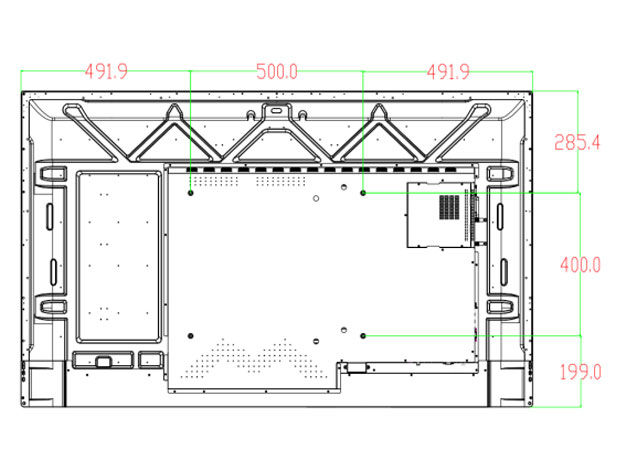

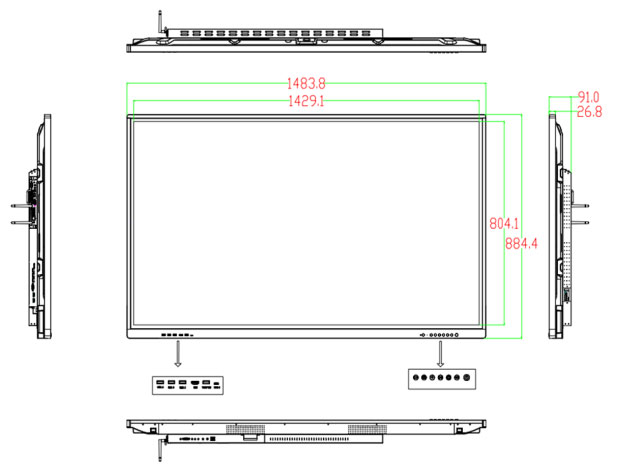

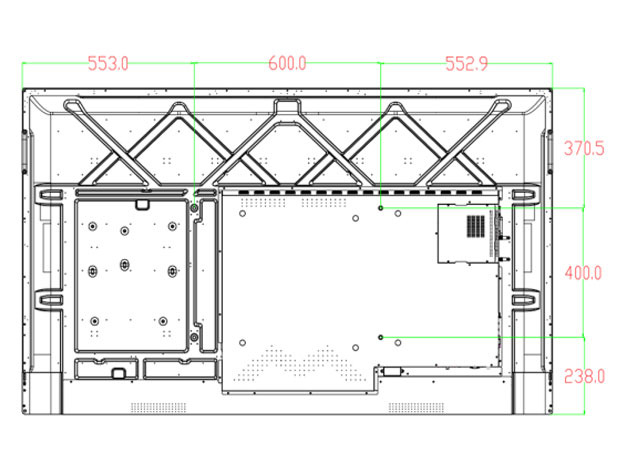

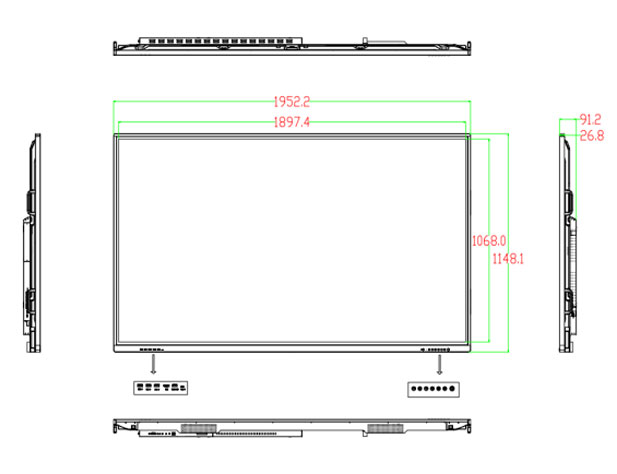

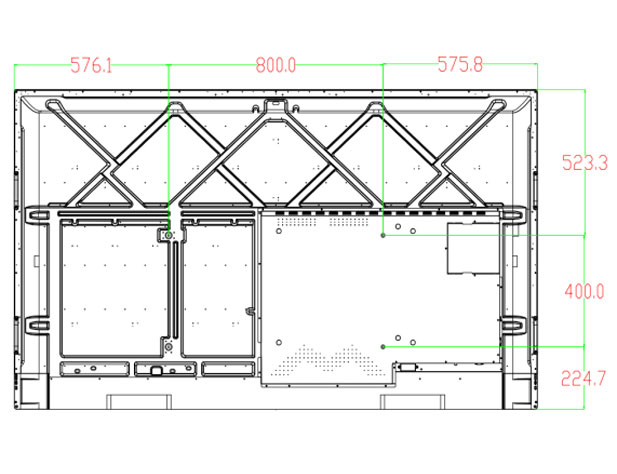

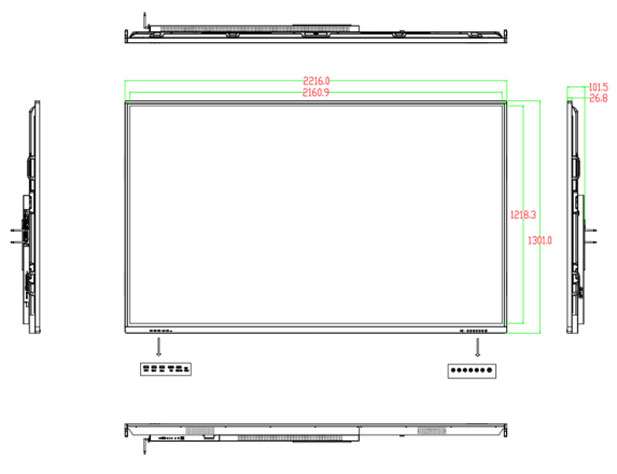

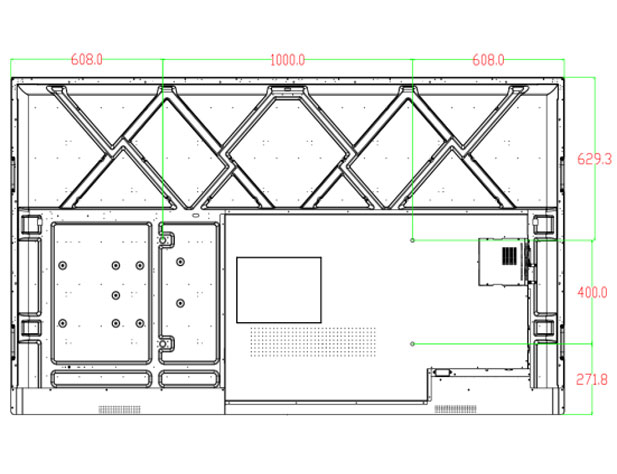

Art Work of  IFP
	65"			75"
	86"			98"
